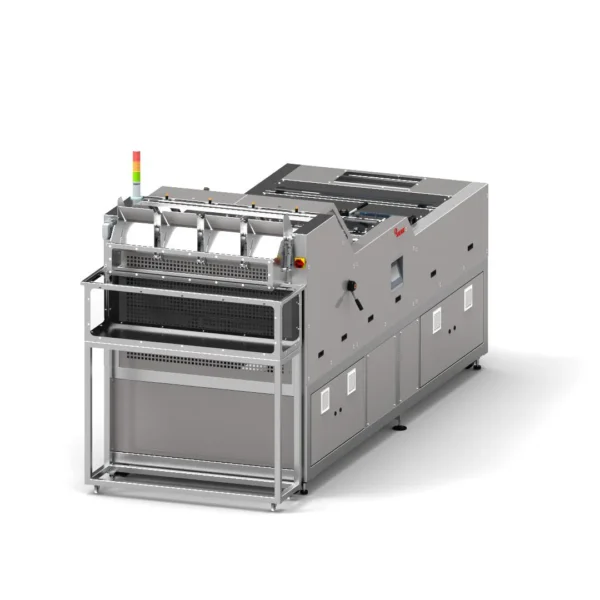

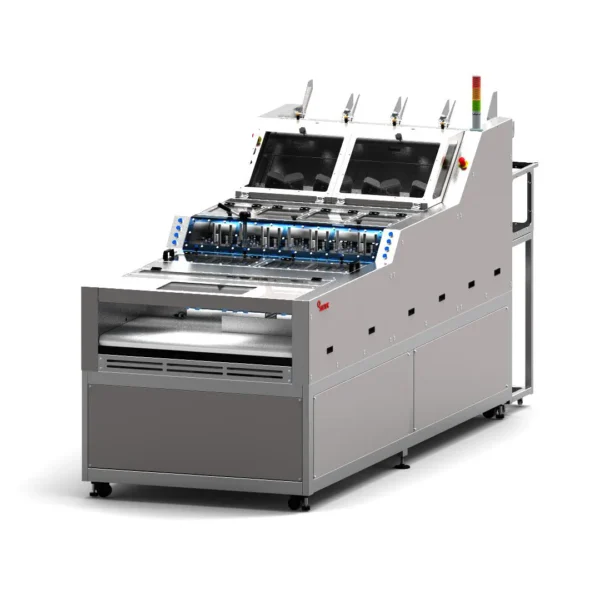

SALTEK’s high-performance stacking machines offer a rational and efficient solution for pita bread stacking. Designed with simplicity, versatility, and safety in mind, this state-of-the-art equipment can stack any number of loaves per pack depending on bread diameter. Built to meet the highest safety standards, the machine ensures smooth operation while optimizing performance for bakeries of all sizes.
Variant
- Loaf size: 160mm up to 300mm
- Production rate: up to 22 bags/min on 1 row (after aligning system)
- Total number of motors: 4
- 3-phase voltage, suitable for all countries, with 2.5 KW power consumption
Material and Build
- Manufactured in luxury finishing stainless steel (304)
- Mounted on wheels for easy installation and maintenance, with lockable castors for any alternative uses of the machine
- Electro-pneumatic machine
Technical Specifications
- Flipping system that enables the baked surface of the pita bread to be visible on both ends of the packed loaves (repositioning upside down)
- Very flexible and easy diameter handling thanks to the adjustable handler
- The loaves should be ordered properly from the cooling conveyors to the stacking machine (to be properly stacked)
- Equipped with a PLC and touch screen panel to control the number of stacked pita bread and to display the quantity of stacked bread
- Conversion system enabling to unify the multiple rows into a single row, permitting the ease of the packaging procedure
- The machine occupies a minimum working space due to the straight aligning system at the end (and not a 90-degree system)
- Pressing device for smoother and easier operation
- A special rejection system is installed at the in-feed machine, preventing defective loaves from being stacked
- During the working cycle, the escape conveyor (the rejection system) will be continuously working if any emergency stops or the cover of the machine is opened; hence, to permit and accumulate the loaves to be further stacked at its later stage
